ULTIMA RC PRO G2
features
The Pinnacle of Competitive Recurve Sights
For over two decades on the world stage, the ULTIMA RC has earned unwavering trust.
Now, with its innovative new polygonal extension and redesigned architecture, it advances even further—redefining rigidity, quietness, and balance. And with the finest micro-adjustment precision in SHIBUYA’s history, it brings out the highest performance in every shot.
Finer Adjustment — SHIBUYA’s Smallest Click Increment
Vertical and horizontal adjustments now move approximately 0.04 mm per click, an improvement from the previous model’s 0.05 mm.
This enables ultra-fine tuning to meet the micron-level precision demanded by competitive archers.
Zero Backlash — ZPE System Integration
The ZPE System, highly acclaimed in the CP PRO and CPX III series, is now adopted in the RC lineup as well.
By optimizing the internal structure, true zero backlash has been achieved.
Even during reverse adjustments, each click responds firmly, allowing for more accurate sight calibration.
Quick-Release Sight Pin Stopper
This allows smooth, one-touch adjustment and significantly reduces setup time—helping archers stay composed even under time pressure.
New Polygonal Extension — The Fusion of Balance and Silence
After more than 100 prototypes, the newly designed polygonal carbon extension has been perfected.
While maintaining the exceptional rigidity and vibration damping performance of previous models, it achieves an ideal weight balance and enhanced stability when mounted on the bow.
Every contour has been redesigned to guide each shot with greater quietness and precision, offering a seamless harmony of control and performance.
New Sight Mount — Precise Positioning with Click-Ball Mechanism
The newly engineered mount section incorporates a click-ball positioning system, allowing the extension’s front and rear position to be securely fixed with a tactile click.
This prevents alignment shifts during reassembly and enables quick, reliable adjustments with perfect repeatability.
As a result, both operational smoothness and consistency in competition settings have been greatly improved.
The newly engineered mount section incorporates a click-ball positioning system, allowing the extension’s front and rear position to be securely fixed with a tactile click.
This prevents alignment shifts during reassembly and enables quick, reliable adjustments with perfect repeatability.
As a result, both operational smoothness and consistency in competition settings have been greatly improved.
Sight Scale Plates
X-Lock System US Pat No. 7,287,335
Re-adjustable, zero-tolerance fit between the windage unit and sight frame. Super-slick and durable polyacetal resin guide spacers enclose the elevation rail, re-adjustable at the turn of a set screw. All parts field-adjustable and -replaceable!
New, maximum grip dial finish
ULTIMA RC sights feature completely reworked dials and mounting knobs, making every adjustment delightful and enabling the user to securely tighten the mounting knob more easily and securely than ever!
Enhanced Maintainability — Built for Long-Term Use
Parts susceptible to wear over time have been redesigned for easier maintenance.
Replacement and cleaning of consumable components can now be performed more efficiently, ensuring long-term stability and consistent performance with proper care.
Spec Table
| Weight | 520-9: 236g (including sight pin) 250-9: 233g (including sight pin) |
||
|---|---|---|---|

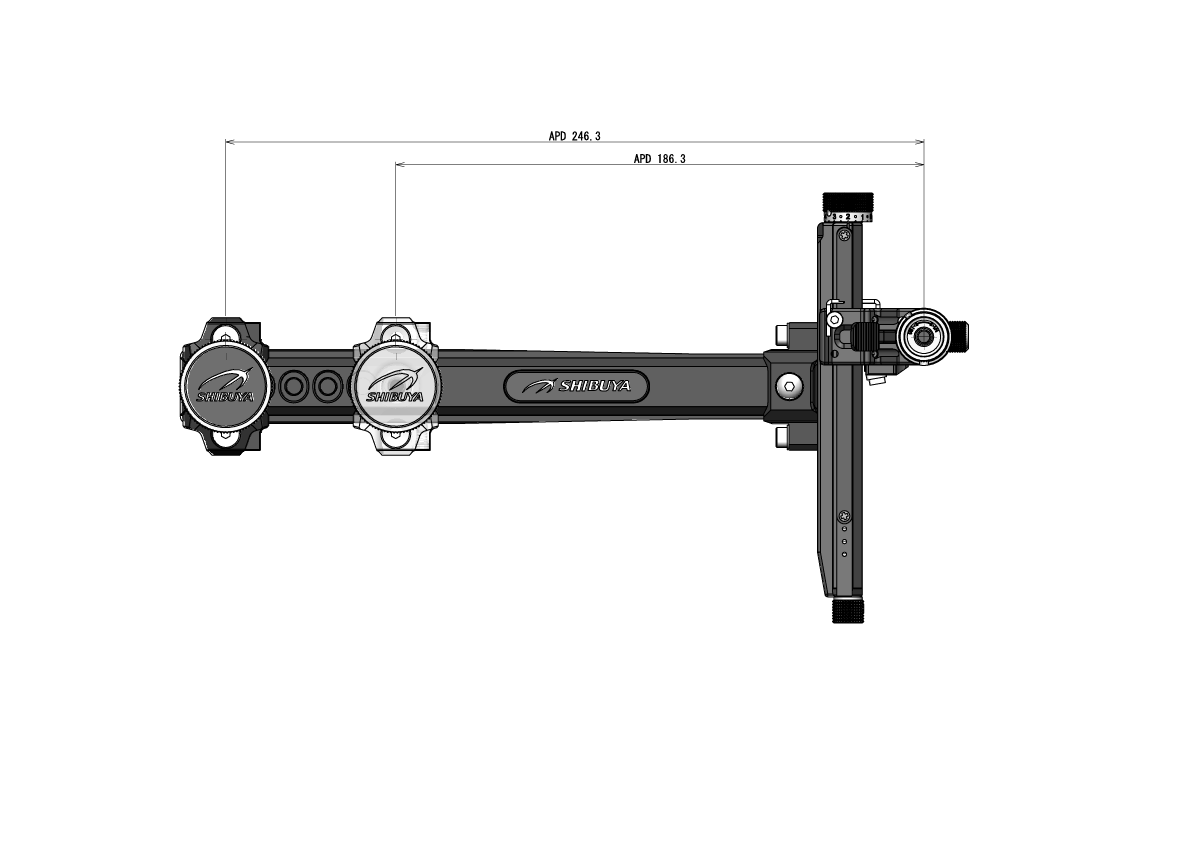

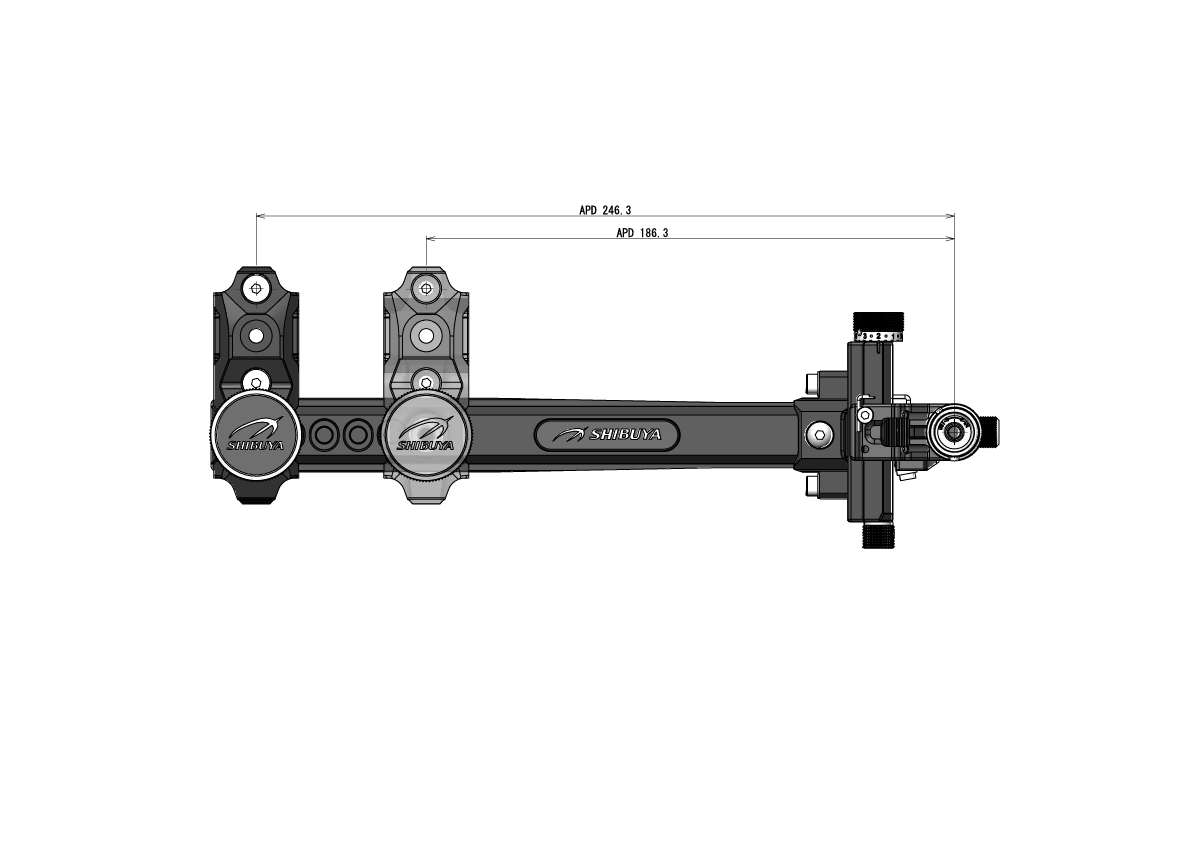

| Aperture Distance (APD) | Max 249mm / Min 83mm | ||
| Elevation | Drive System | Lockdown-less Screw Drive with Jump Mechanism | |
| Length | 520-9: 132mm (approx. 5.2 inches) 250-9: 63.5mm (approx. 2.5 inches) |
||
| Travel Range | 520-9: approx. 107mm 250-9: 41.9mm |
||
| Movement Step | 1 rotation = 1/32 inch (approx. 0.8mm) | ||
| 1 click = 1/640 inch (approx. 0.04mm) | |||
| Tilt Adjustment | Yes | ||
| Windage | Travel Range | 5.4mm | |
| Movement Step | 1 rotation = 1/32 inch (approx. 0.8mm) | ||
| 1 click = 1/640 inch (approx. 0.04mm) | |||
| Compatible Sight Pin | Thread Size No.8-32 | ||
| Extension | Length | 233mm (approx. 9 inches) | |
| Adjustment Range | 2.4 inches (60mm) | ||
| Adjustment Step | 0.5 inch (12.7mm) | ||
| Main Materials | Elevation Section | 6000-Series Aluminum Alloy | |
| Box Section | 6000-Series Aluminum Alloy | ||
| Extension | Carbon Fiber | ||
| Color | Black, Gunmetal, Blue, Red | ||
| RH/LH | Available | ||
| Release | 2025 | ||
| Included Accessories |
Soft Case for Sight No.10-24 Mounting Screw Hex Wrench (1.5mm / 2.5mm / 3mm) Blank Tape |
||
| Instruction Manual | |||
ULTIMA RC PRO G2
Product development
— Re-engineering a 20-Year Tradition —
While preserving the iconic X-Lock System that defines ULTIMA, we thoroughly reworked every area prone to play and wear over time—renewing maintainability, durability, and precision from the ground up.
To further enhance integration with the bow and optimize installed weight balance, we redesigned the polygonal extension cross-section from scratch.
Over 100 prototypes were tested. The result of this exhaustive exploration is an ideal balance that delivers exceptional stability and feel, while pushing rigidity, quietness, and vibration damping to the extreme.
It is the culmination of decades of craftsmanship—and relentless innovation.
